Casement Windows

Series 4300 - Casement Outswing


Technical Details Features Testing Results
Casement Outswing Beveled Sashes C-C90 Rating
2 1/2" Frame Fully Thermally-Broken Components Operating Force: 15lbf
1" to 1 1/2" Insulating Glass Concealed S/S 4 Bar Hinges Air Infiltration: 0.01 cfm2
C-C90 Rating White Bronze Cam Handle/Strike Water Pressure: 15.05 PSF
Cut Size on W&H: 1/8" Corresponding Fixed Unit: 4710 Load Deflection: 120.38 PSF
2 1/2" Flange Head/Jamb/Sill Options   Load Structural: 180.57 PSF
    Entry Resistance: Grade 10
Click Image to Enlarge:

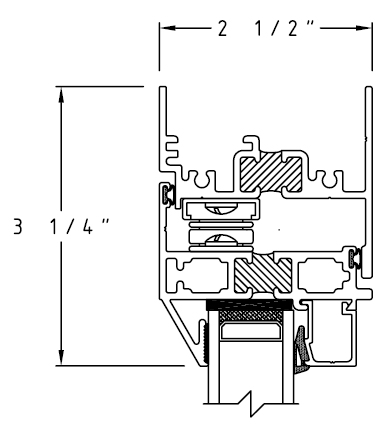

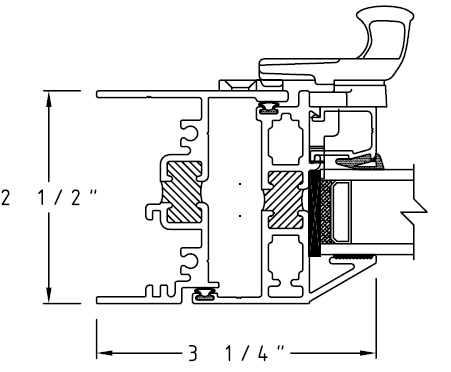

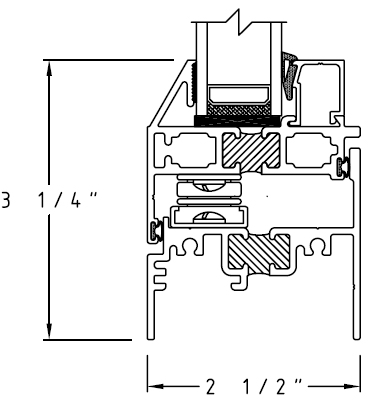

Head Jamb Sill
Head Jamb Sill
Download Materials for 4300:
