Fixed Windows

Series 7510 - Fixed


Technical Details Features Testing Results
Fixed Window Fully Thermally-Broken Components FW-AW75 Rating
4 1/8" Frame Beveled Sashes Air Infiltration: <0.01 cfm2
1" Insulating Glass
Corresponding Units:
Water Pressure: 12.12 PSF
FW-AW75 Rating
     7500 Sliding
Load Deflection: 75.24 PSF
2 1/2" Flange Head/Jamb/Sill   Load Structural: 112.85 PSF
Cut Size on W&H: 1/8"   Entry Resistance: Grade 40
Minimum Size: 12" x 12"
Maxiumum Size: 60" x 99"
Click Image to Enlarge:
Head Jamb Sill

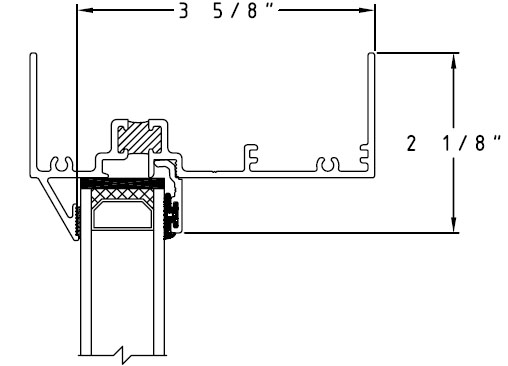

Head

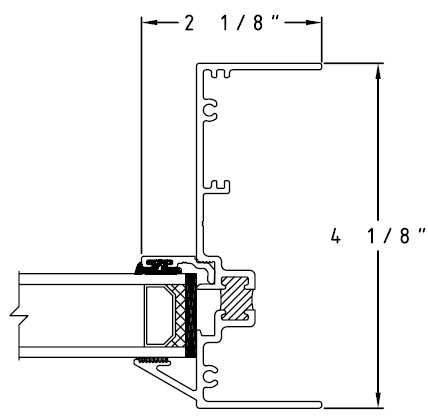

Jamb

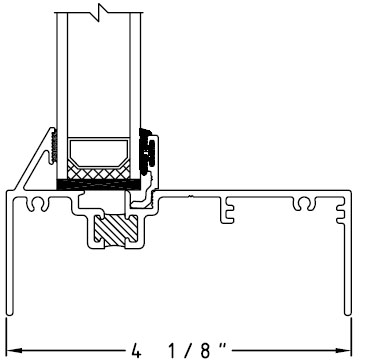

Sill

Download Materials for 7510:
