Fixed Windows

Series 9510 - Fixed

Technical Details Features Testing Results
Fixed Window Fully Thermally-Broken Components FW-HC70 Rating
3 1/4" Frame
Corresponding Units:
 Air Infiltration: 0.06 cfm2
7/8" Insulating Glass
     9000 Tilt Double Hung
 Water Pressure: 10.66 PSF
FW-HC70 Rating
     9500 Tilt Double Hung
 Load Deflection: 70.22 PSF
2 1/2" Flange Head/Jamb/Sill   Load Structural: 105.33 PSF
Cut Size on W&H: 1/8"   Entry Resistance: Grade 40
Minimum Size: 12" x 12"
Maxiumum Size: 60" x 99"
Click Image to Enlarge:
Head Jamb Sill Fixed/Fixed H-Mullion

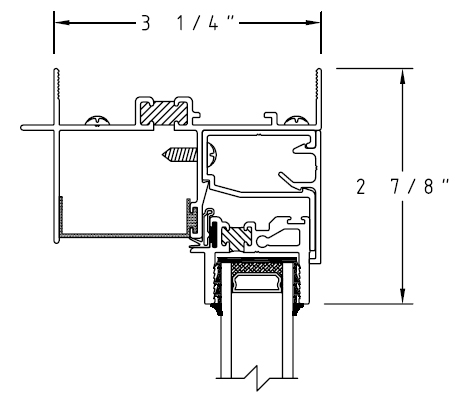

Head

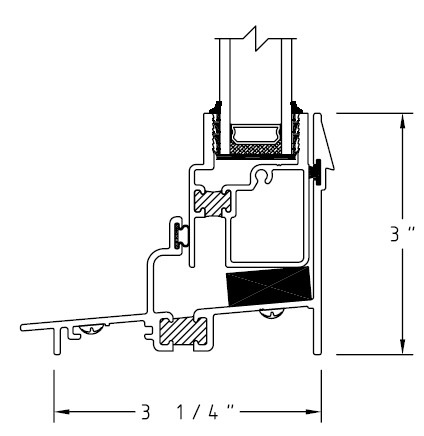

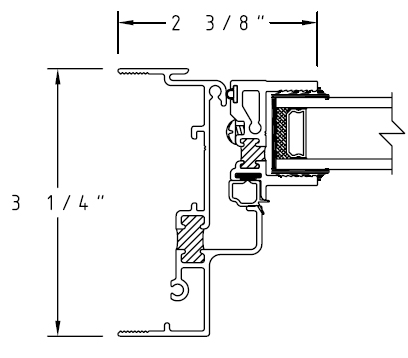

 Jamb Sill

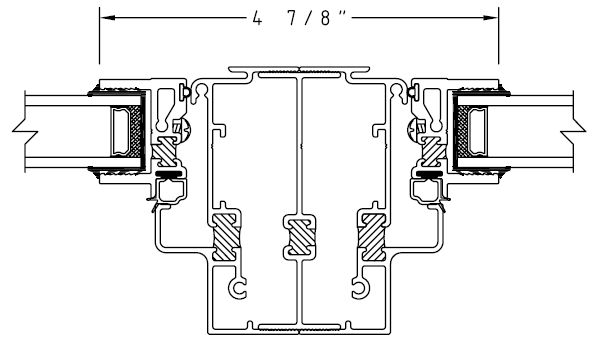

Fixed/Fixed
H-Mullion
Download Materials for 9510:
