Fixed Windows

Series 2510 - Fixed


Technical Details Features Testing Results
Fixed Window Fully Thermally-Broken Components FW-HC100 Rating
3 1/4" Frame
Corresponding Units:
Air Infiltration: <0.01 cfm2
7/8" Insulating Glass
     1000 Sideload Double Hung
Water Pressure: 12.12 PSF
FW-HC100
     2000 Horizontal Slider
Load Deflection: 105.33 PSF
1 1/2" Flange Head/Jamb/Sill
     2400 Tilt Double Hung
Load Structural: 150.47 PSF
2 1/2" Flange Head/Jamb/Sill
     2500 Tilt Double Hung
Entry Resistance: Grade 40
Cut Size on W&H: 1/8"
Minimum Size: 12" x 21"
Maxiumum Size: 60" x 71"
Click Image to Enlarge:

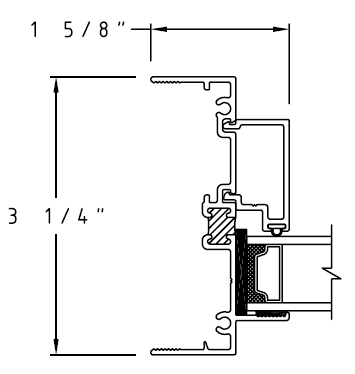

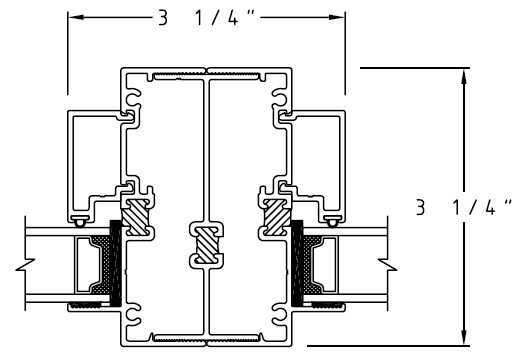

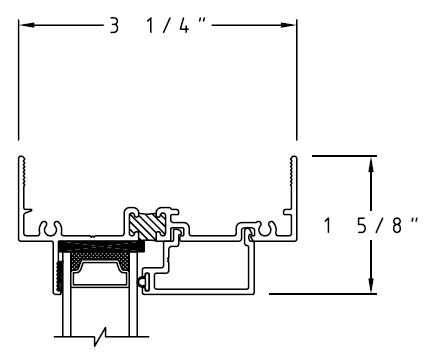

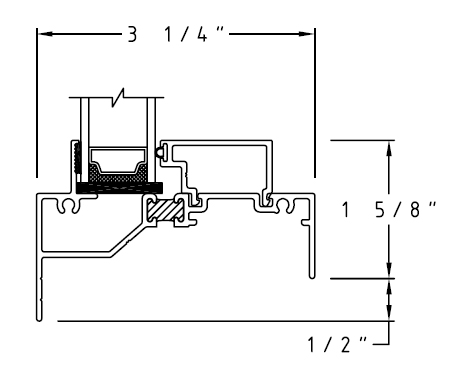

Head Jamb Sill Fixed/Fixed Jamb

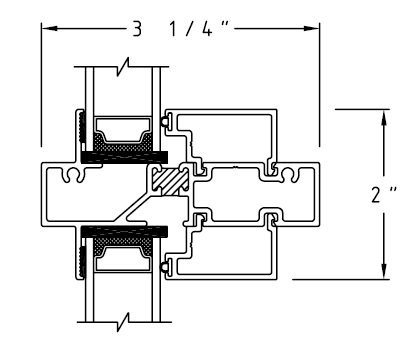

F/F Cont Frame
Head Jamb Sill Fixed/Fixed Jamb Fixed Over Fixed Cont. Frame
