Casement/Projected Windows

Series 5045 - Casement/Projected


Technical Details Features
5145 Projected Outswing Beveled Sashes
5245 Casement Inswing Fully Thermally-Broken Components
5345 Casement Outswing Glazing Bead w/ 1 Piece Gasket & Bead
5445 Casement Inswing EDPM Gasket
4 1/2" Frame Concealed Multi-Point Lock (over 40")
1" Insulating Glass Heavy-Duty Lift Handle
Cut Size on W&H: 1/8" Male-Female Frame Connection
  Corresponding Fixed Unit: 5745
Click Image to Enlarge (5345 Details):

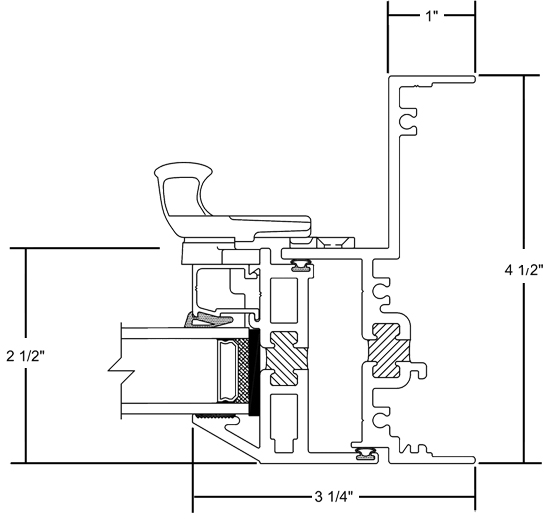

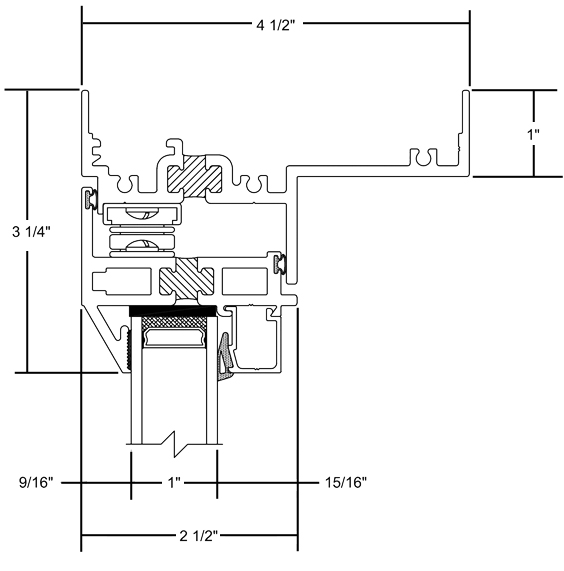

Head Jamb (Hinge) Jamb (Handle)

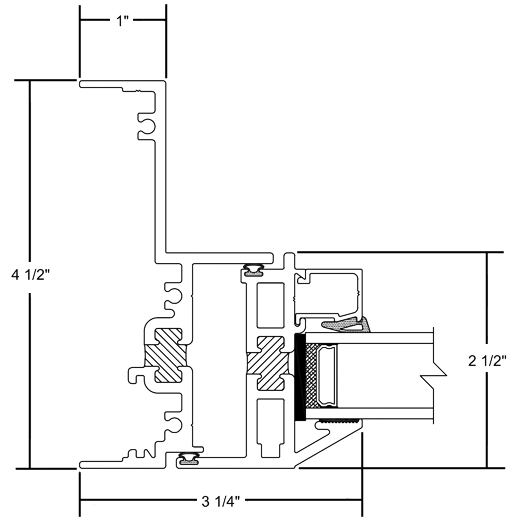

Head Jamb (Hinge) Jamb (Handle)

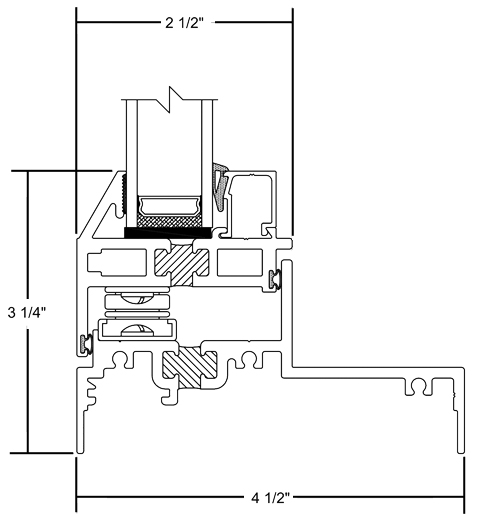

Sill
Sill
5145 Testing Results 5245 Testing Results 5345 Testing Results 5445 Testing Results
AP-AW120 Rating AP-AW110 Rating C-AW85 Rating C-AW120 Rating
Operating Force: 12 lbf Operating Force: 12 lbf Operating Force: 26 lbf Operating Force: 7 lbf
Air Infiltration: 0.03 cfm2 Air Infiltration: 0.02 cfm2 Air Infiltration:<0.01 cfm2 Air Infiltration: 0.06 cfm2
Water Pressure: 15.05 PSF Water Pressure: 12.12 PSF Water Pressure: 15.05 PSF Water Pressure: 12.12 PSF
Load Deflection: 120.38 PSF Load Deflection: 120.38 PSF Load Deflection: 85.27 PSF Load Deflection: 120.38 PSF
Load Structural: 180.56 PSF Load Structural: 165.52 PSF Load Structural: 127.90 PSF Load Structural: 180.57 PSF
Entry Resistance: Grade 10 Entry Resistance: Grade 10 Entry Resistance: Grade 10 Entry Resistance: Grade 10

Download Materials for 5145: Download Materials for 5245: Download Materials for 5345: Download Materials for 5445:
