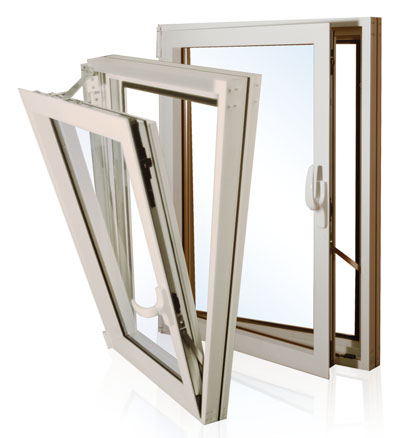

Tilt-and-Turn Windows

Series 8000T/8000NT - Tilt-and-Turn


Tilt-and-Turn Champion’s 8000T Tilt-and-Turn windows are I-Strut, thermally-broken windows. Featuring either a 4 1/2” or 2 7/8“ frame depth, the 8000T provides the versatility to be able to be utilized in many applications. Both the 4 1/2” and 2 7/8” products feature fixed and operable units with equal sightlines. Champion’s 8000T windows have the highly functional combination of projected and casement inswing windows in a tilt-and-turn configuration. A simple turn of the handle in different directions will cause Champion’s tilt-and-turn products to open in the desired way. Champion’s 8000T windows have structurally glazed sashes and pressure-equalized designs, both contributing to their performance. The functionality and versatility of Champion’s 8000T Tilt-and-Turn windows makes either of these products a great choice for new construction or rehabilitation jobs.
Technical Details Features
Tilt-and-Turn Operation Euro-Groove Hardware
4 1/2" Frame (8000T) Multi-Point Lock
2 7/8" Frame (8000NT) Fully Thermally-Broken Components
1" Insulating Glass Structural Glazing
I-Strut Thermal Break Window Wall Configuration (Optional)
Cut Size on W&H: 1/8" 4 3/4" Sightlines w/ Mullion (Window Wall)
1" Flange Frame Optional Corresponding Fixed Unit (4 1/2"):
8010
Minimum Sash Size: 18" x 18" Corresponding Fixed Unit (2 7/8"):
8010N
Maximum Sash Size: 60" x 72"
