Double Hung Windows

Series 1000 - Sideload Double Hung


Technical Details Features Testing Results
Sideload Double Hung Removable Take-Out Clips H-C65 Rating
3 1/4" Frame Easy-Grip Curved Lift Rail Operating Force: 28lbf
7/8" Insulating Glass Top Sash Anti-Drift Latches Air Infiltration: 0.10 cfm2
H-C65 Rating Dual Seal Double Strength Glass Water Pressure: 9.82 PSF
Cut Size on W&H: 1/8" Engraved Metal Sash Lock Load Deflection: 65.20 PSF
1 1/2" Flange Head/Jamb/Sill Options Fully Thermally-Broken Components Load Structural: 97.81 PSF
2 1/8" Head/Jamb/Sill Jamb Adjusters Entry Resistance: Grade 10
Minimum Size: 12" x 21" Corresponding Fixed Unit: 2510
Maxiumum Size: 56" x 91"
Click Image to Enlarge:

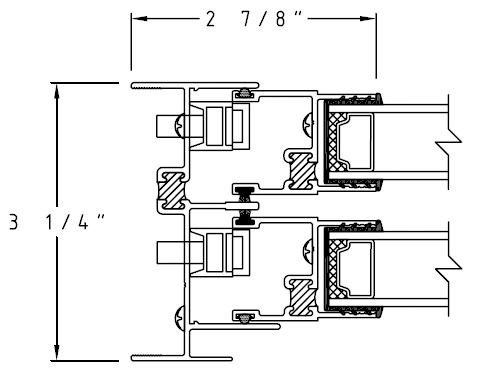

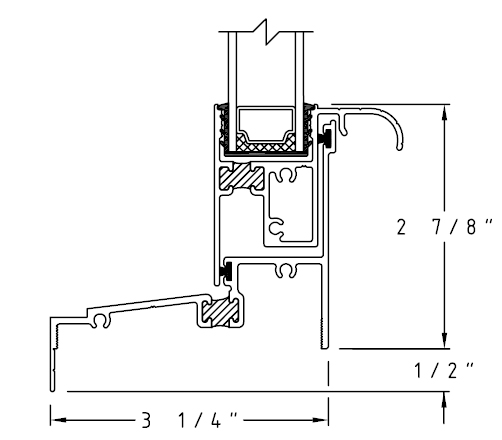

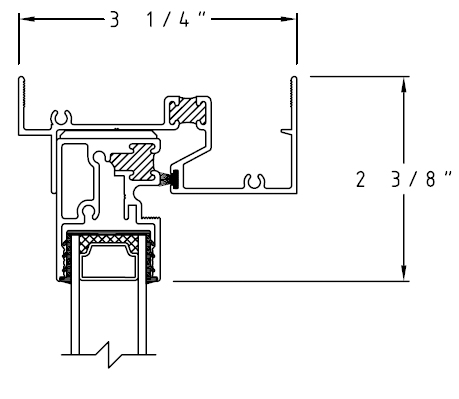

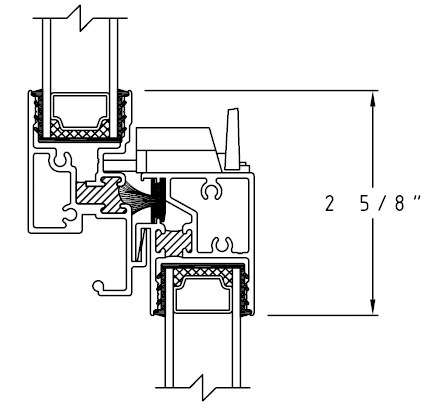

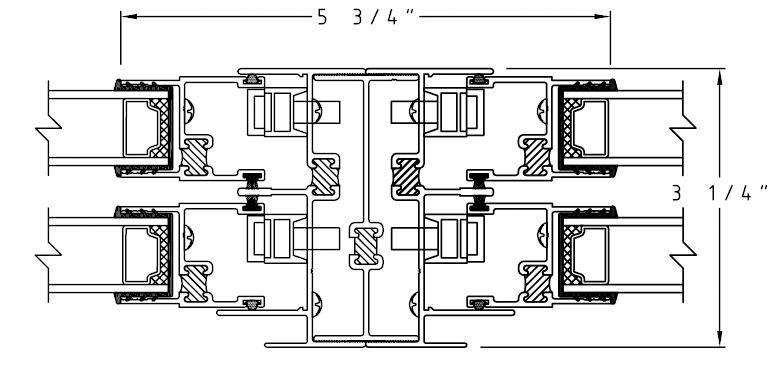

Head Jamb Meeting Rail Sill H-Mullion
Head Jamb Meeting Rail Sill H-Mullion
