Series 5200 - Projected Inswing


Technical Details Features Testing Results
Projected Inswing (Hopper) Beveled Sashes AP-AW110 Rating
2 1/2" Frame Fully Thermally-Broken Components Operating Force: 12lbf
1" to 1 1/2" Insulating Glass Concealed S/S 4 Bar Hinges Air Infiltration: 0.02 cfm2
AP-AW110 Rating White Bronze Cam Handle/Strike Water Pressure: 12.12 PSF
AP-HC100 Corresponding Fixed Unit: 5710 Load Deflection: 120.38 PSF
Cut Size on W&H: 1/8"   Load Structural: 165.52 PSF
2 1/2" Flange Head/Jamb/Sill Options   Entry Resistance: Grade 10
Click Image to Enlarge:

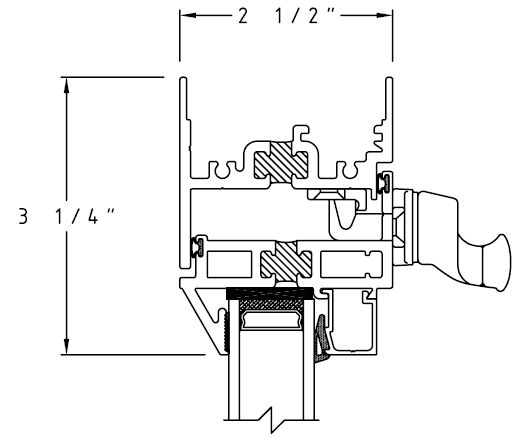

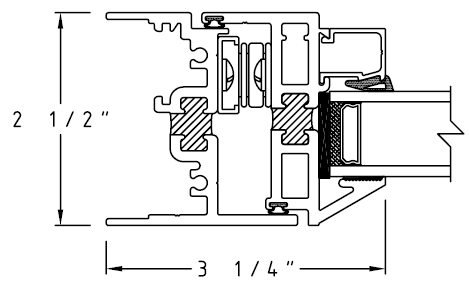

Head Jamb Sill
Head Jamb Sill
Download Materials for 5200:
