Fixed Windows

Series 8010 - Fixed


Technical Details Features Testing Results
Fixed Window Wall Fully Thermally-Broken Components FW-AW110 Rating
4 1/2" Frame Slab-to-Slab Receptor System Air Infiltration: <0.01 cfm2
1" Insulating Glass Pressure-Equalized Design Water Pressure: 15.05 PSF
FW-AW110 Rating
Corresponding Units:
Load Deflection: 120.38 PSF
Cut Size on W&H: 1/8"
     8000 Window Wall
Load Structural: 165.51 PSF
Minimum Size: 15" x 15"   Entry Resistance: Grade 40
Maxiumum Test Size: 36" x 60"
Click Image to Enlarge:
Head Jamb Sill Fixed to Fixed Mullion

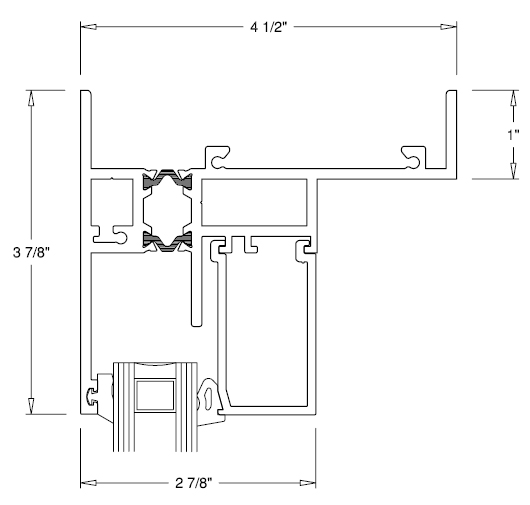

Head

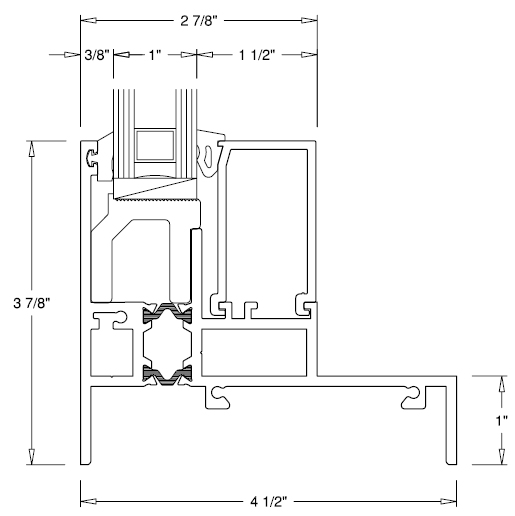

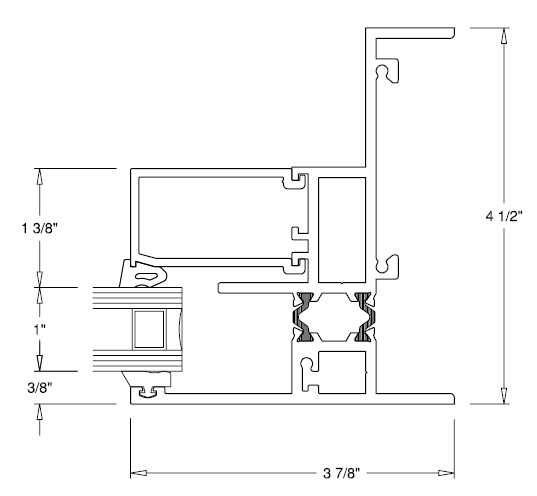

Jamb Sill

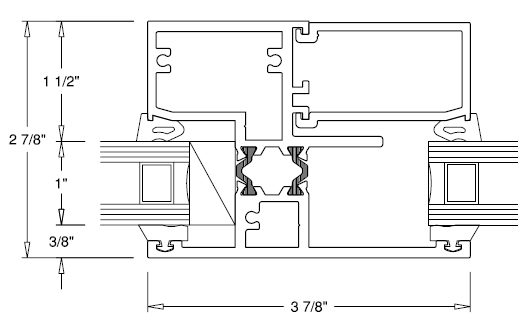

Fixed/Fixed Mullion

Download Materials for 8010:
