Fixed Windows

Series 5745 - Fixed


Technical Details Features Testing Results
Fixed Window Fully Thermally-Broken Components FW-AW80 Rating
4 1/2" Frame Beveled Sashes Air Infiltration: <0.01 cfm2
1" Insulating Glass
Corresponding Units:
Water Pressure: 15.05 PSF
FW-AW80 Rating
     5145 Projected Outswing
Load Deflection: 90.28 PSF
2 1/2" Flange Head/Jamb/Sill
     5245 Projected Inswing
Load Structural: 120.38 PSF
Cut Size on W&H: 1/8"
     5345 Casement Outswing
Entry Resistance: Grade 40

     5445 Casement Inswing

Click Image to Enlarge:

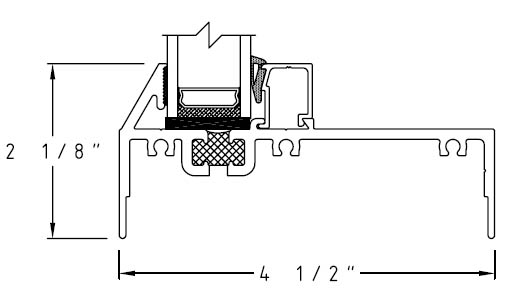

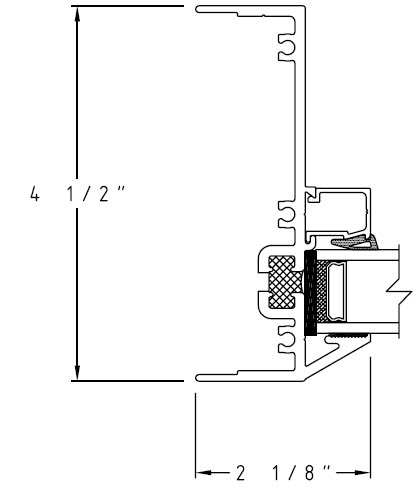

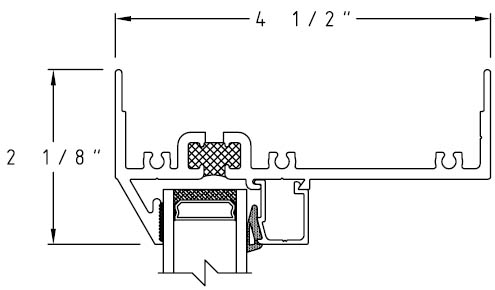

Head Jamb Sill
Head Jamb Sill
