Sliding Windows

Series 2000 - Sliding


Technical Details Features Testing Results
Horizontal Slider 3/4" Foam Standard HS-C55 Rating
3 1/4" Frame Engraved Metal Sash Lock Operating Force: 12lbf
7/8" Insulating Glass 2 Sash Locks (over 40" high) Air Infiltration: 0.07 cfm2
HS-C55 Rating Dual Seal Double Strength Glass Water Pressure: 8.36 PSF
Cut Size on W&H: 1/8" Fully Thermally-Broken Components Load Deflection: 55.17 PSF
2 1/2" Flange Head/Jamb/Sill Options Corresponding Fixed Unit: 2510 Load Structural: 82.76 PSF
Minimum Size: 24" x 12"   Entry Resistance: Grade 10
Maximum 2-Lite Test Size: 71" x 60"
Maximum 3-Lite Test Size: 140" x 60"
Click Image to Enlarge:

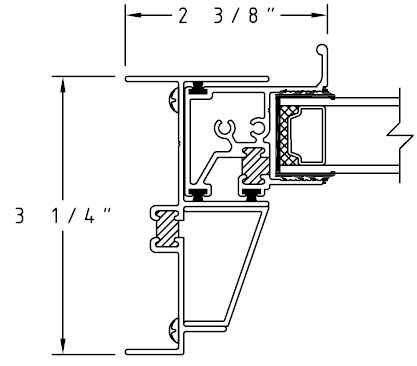

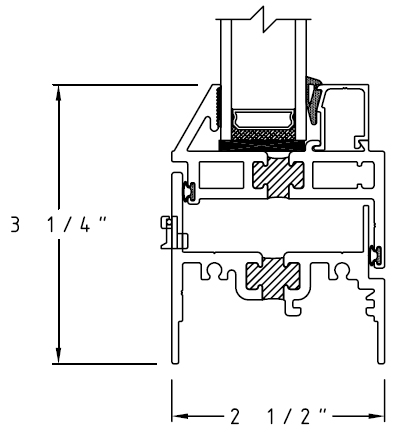

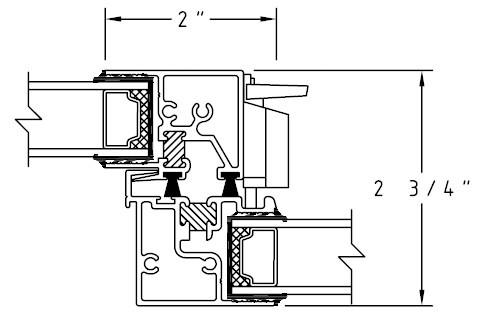

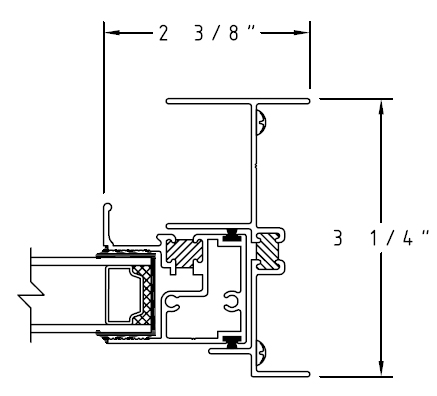

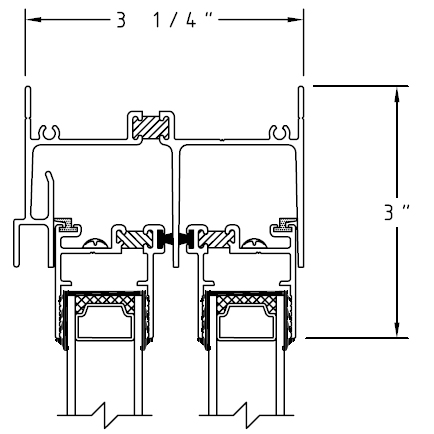

Head Left Jamb Interlock Right Jamb Sill
Head Left Jamb Interlock Right Jamb Sill
