Double Hung Windows

Series 9500 - Tilt Double Hung


Technical Details Features Testing Results
Tilt Double Hung Metal Sash Stops H-AW50 Rating
3 1/4" Frame Continuous Lift/Lock Rail Operating Force: 44lbf
7/8" Insulating Glass Continuous Anti-Drift/Lock Rail Air Infiltration: 0.17 cfm2
H-AW50 Rating Dual Seal Double Strength Glass Water Pressure: 11.08 PSF
H-HC50 Rating Narrow Sightlines Load Deflection: 50.16 PSF
2 7/8" Jamb Fully Thermally-Broken Components Load Structural: 75.24 PSF
2 3/4" Head Concealed Tilt Latches Entry Resistance: Grade 10
1 7/8" Meeting Rails Solid Stainless Steel Pivot Bars
3 1/8" Sill Telescoped Corners
4 7/8" Twin DH 1-Piece Mullion Auto Engage/Release Sashes
3 7/8" Fixed/DH 1-Piece Mullion Continuous Head and Sill
2 1/2" Flange Head/Jamb/Sill Options Rounded Profiles
Cut Size on W&H: 1/8" OITC 32 Rating
Minimum Size: 12" x 21" Corresponding Fixed Unit: 9510
Maxiumum Size: 60" x 99"
Click Image to Enlarge:

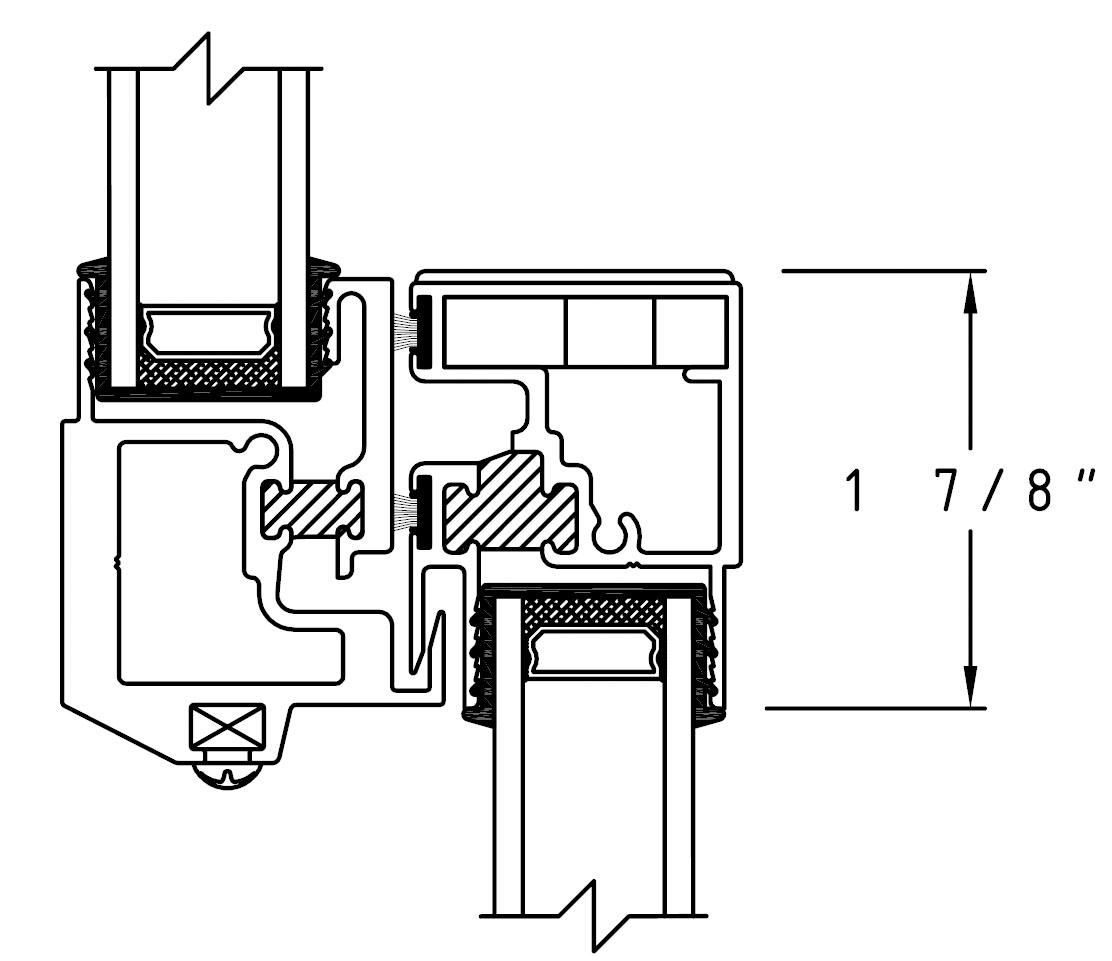

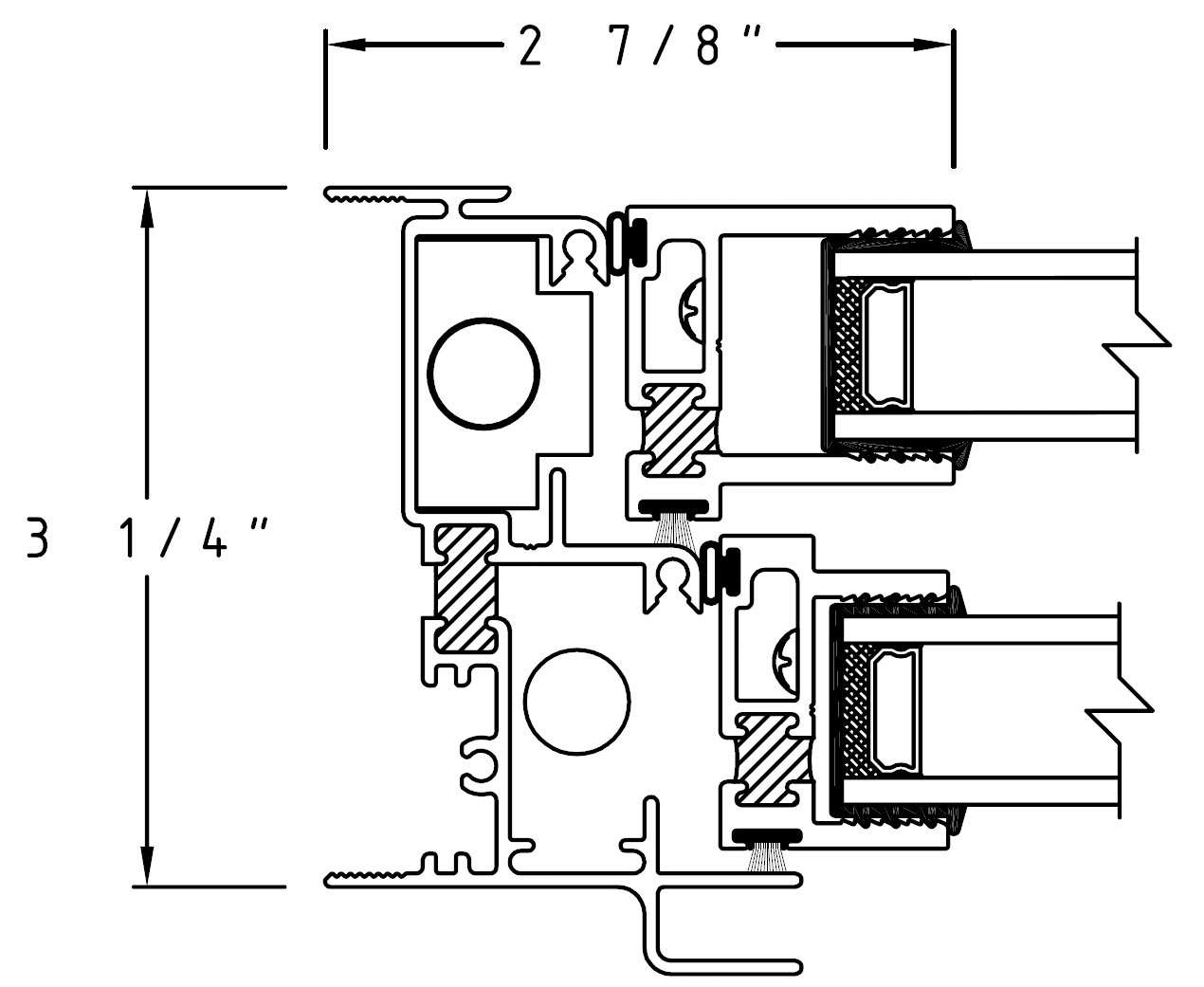

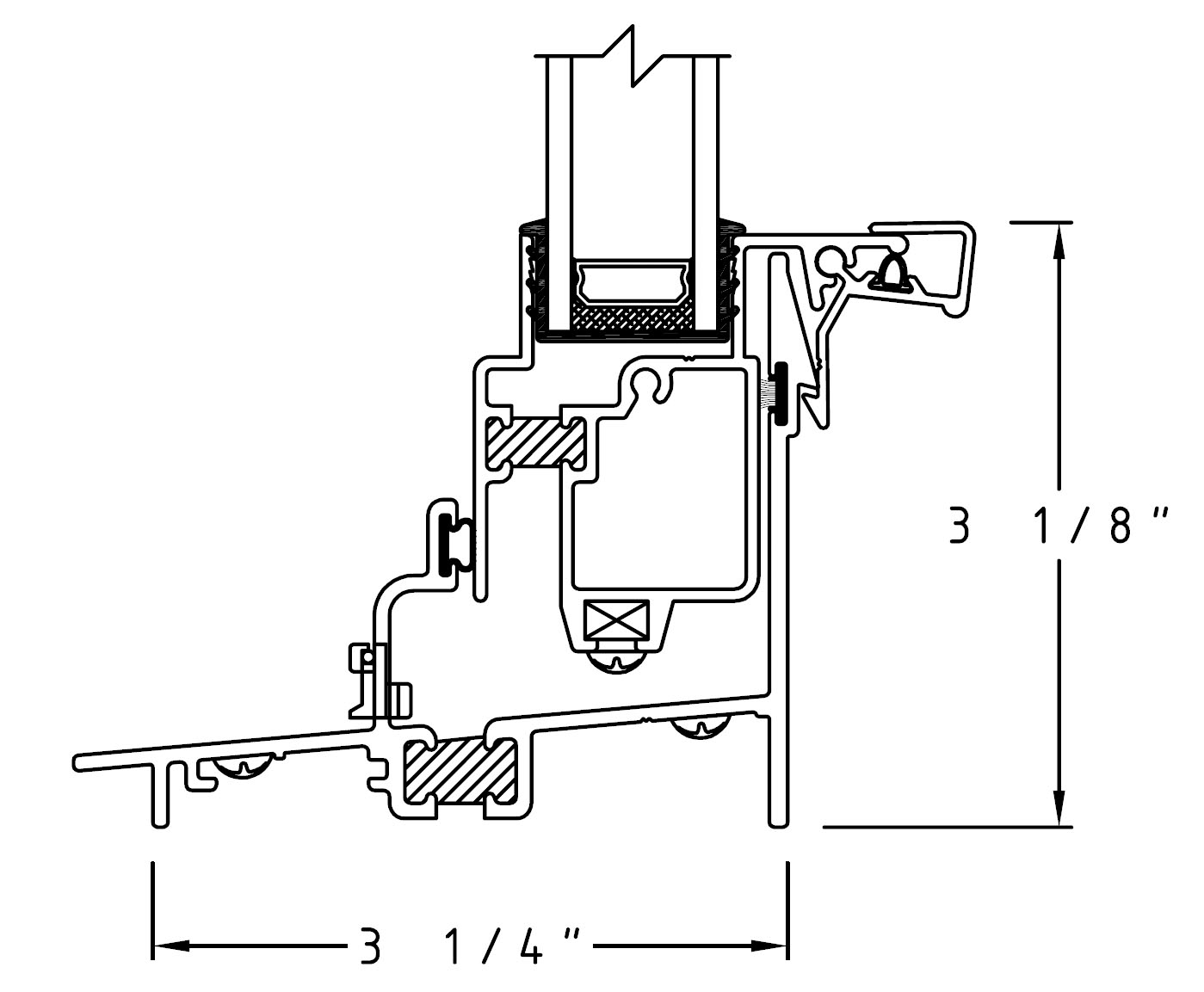

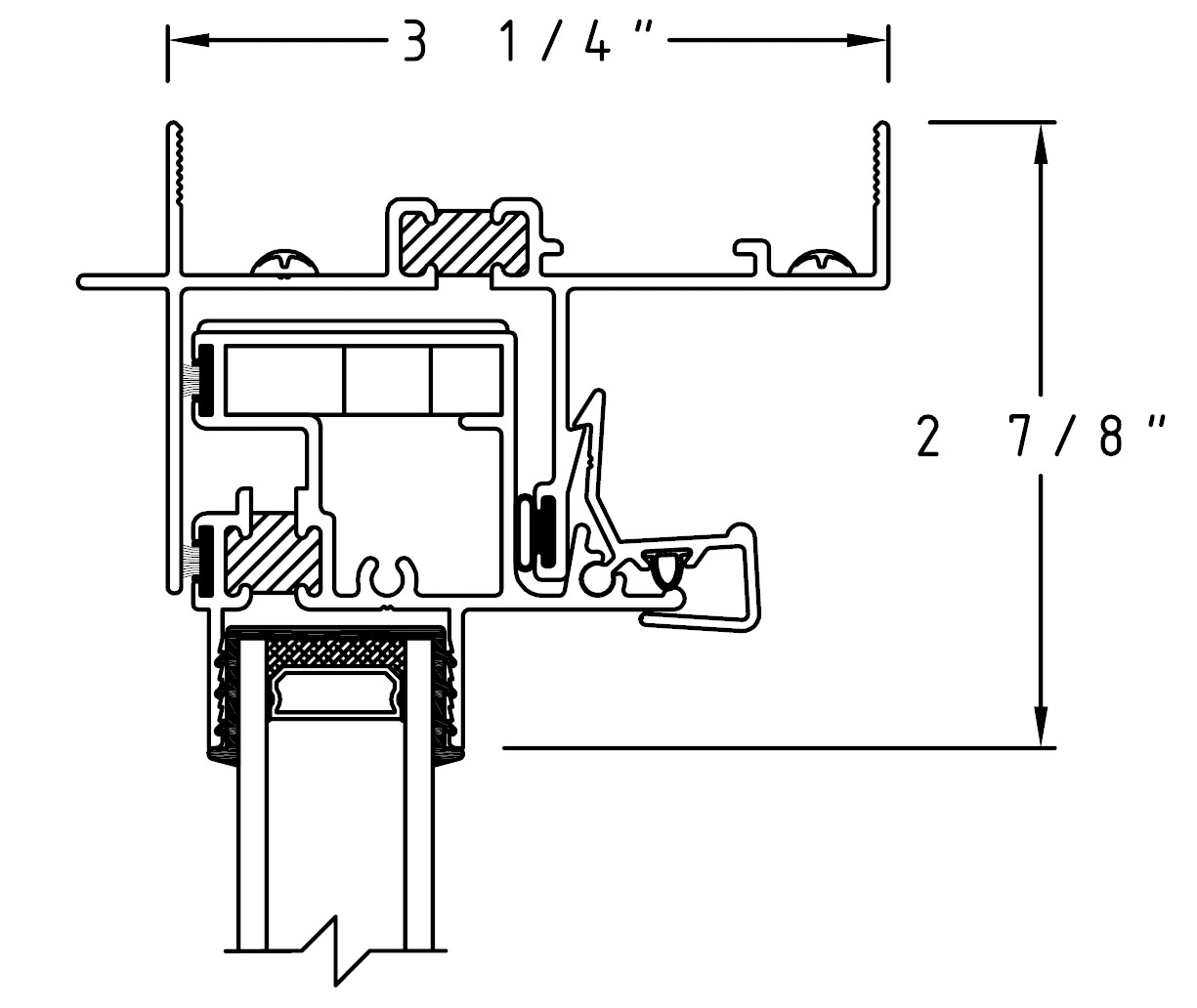

Head Jamb Meeting Rail Sill Integral Mullion
Head Jamb Meeting Rail Sill Integral Mullion
Download Materials for 9500:
