Fixed Windows

Series 5710 - Fixed


Technical Details Features Testing Results
Fixed Window Fully Thermally-Broken Components FW-AW80 Rating
2 1/2" Frame Beveled Sashes Air Infiltration: <0.01 cfm2
7/8" Insulating Glass
Corresponding Units:
Water Pressure: 15.05 PSF
FW-AW80 Rating
     5100 Projected Outswing
Load Deflection: 90.28 PSF
2 1/2" Flange Head/Jamb/Sill
     5200 Projected Inswing
Load Structural: 120.38 PSF
Cut Size on W&H: 1/8"
     5300 Casement Outswing
Entry Resistance: Grade 40
Minimum Size: 12" x 21"
     5400 Casement Inswing

Maxiumum Size: 60" x 99"
Click Image to Enlarge:

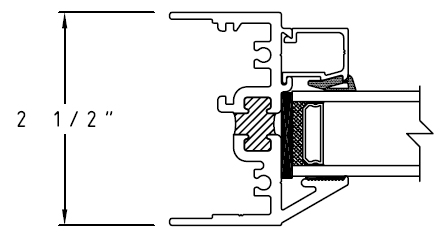

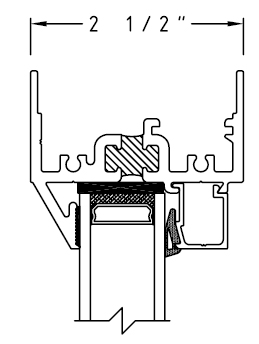

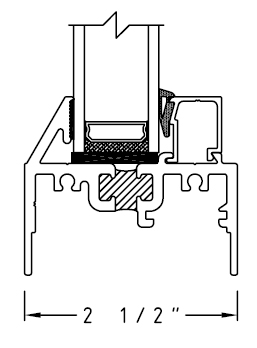

Head Jamb Sill
Head Jamb Sill
Download Materials for 5710:
