Double Hung Windows

Series 6200 - Dual-Glazed Tilt Double Hung


Technical Details Features Testing Results
Tilt Double Hung Metal Sash Stops H-AW55 Rating
4 1/8" Frame Continuous Lift/Lock Rail Operating Force: 41lbf
1" Insulating Glass Continuous Anti-Drift/Lock Rail Air Infiltration: 0.14 cfm2
H-AW55 Rating 1/4" - 1/4" Glass Water Pressure: 11.00 PSF
H-HC65 Rating Full Length Knife-Edge Interlock Load Deflection: 65.00 PSF
0.070 Extrusions Fully Thermally-Broken Components Load Structural: 97.50 PSF
0.125 Sill Concealed Tamper-Proof Tilt Latches Entry Resistance: Grade 10
Cut Size on W&H: 1/8" Solid Stainless Steel Pivot Bars
2 1/2" Flange Head/Jamb/Sill Options Structural Glazing
Minimum Size: 12" x 21" Auto Engage/Release Sashes
Maxiumum Size: 60" x 99" Anti-Bow Clips
  Sill Mounted Jambs
  Corresponding Fixed Unit: 6510
Click Image to Enlarge:

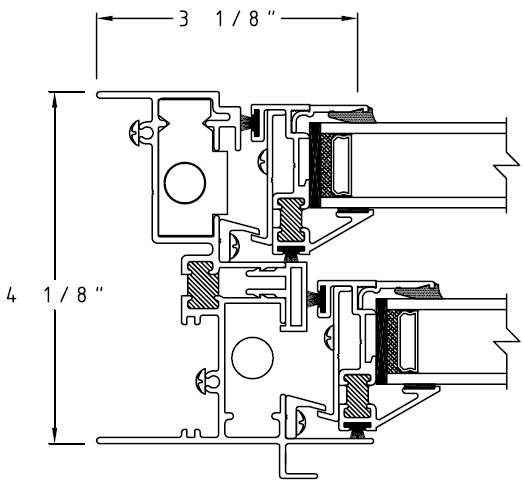

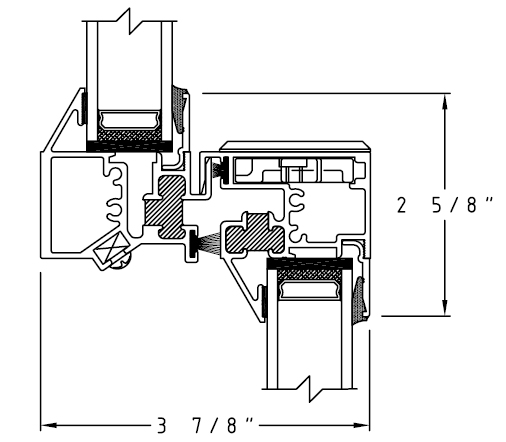

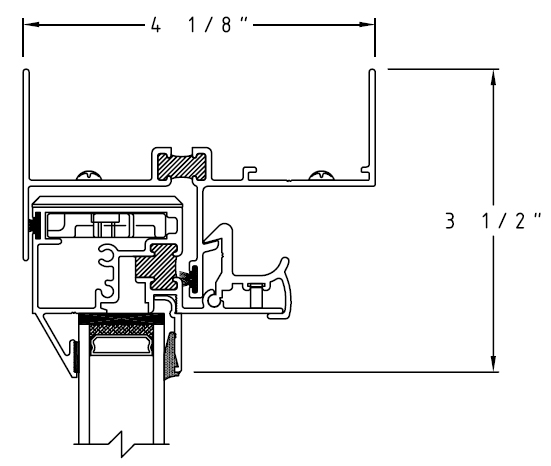

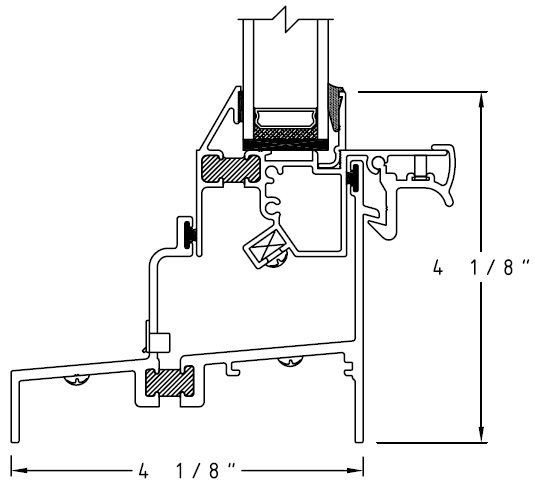

Head Jamb Meeting Rail Sill
Head Jamb Meeting Rail Sill
