Fixed Windows

Series 6510 - Fixed


Technical Details Features Testing Results
Fixed Window Fully Thermally-Broken Components FW-AW85 Rating
4 1/8" Frame Beveled Sashes Air Infiltration: <0.01 cfm2
1" Insulating Glass
Corresponding Units:
Water Pressure: 12.12 PSF
FW-AW85 Rating
     6200 Dual-Glazed Tilt DH
Load Deflection: 90.28 PSF
2 1/2" Flange Head/Jamb/Sill
     6500 Tilt Double Hung
Load Structural: 127.90 PSF
Cut Size on W&H: 1/8"
     6800 Sideload Double Hung
Entry Resistance: Grade 40
Minimum Size: 12" x 12"
Maxiumum Size: 60" x 99"
Click Image to Enlarge:

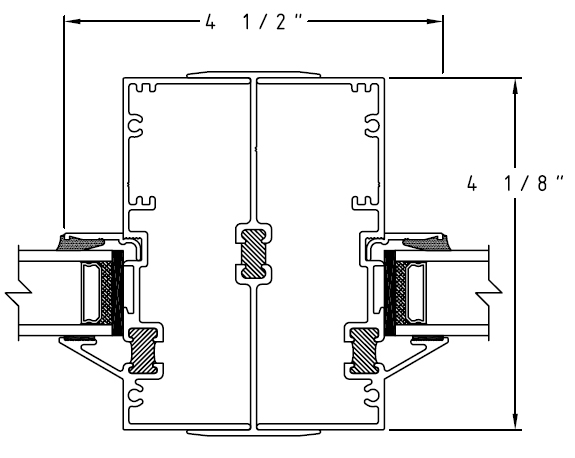

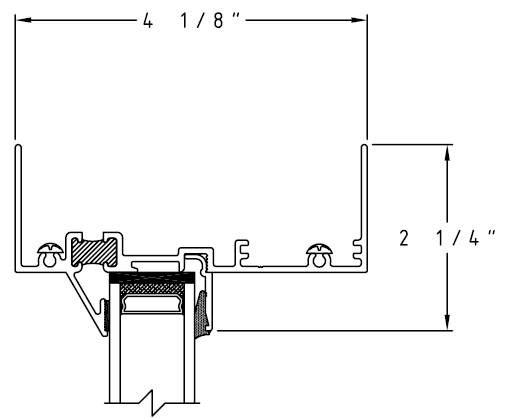

Head/Jamb/Sill Fixed/Fixed H-Mullion
Head/Jamb/Sill Fixed/Fixed H Mullion
