Casement Windows

Series 5300 - Casement Outswing


Technical Details Features Testing Results
Casement Outswing Beveled Sashes C-AW85 Rating
2 1/2" Frame Fully Thermally-Broken Components Operating Force: 26lbf
1" to 1 1/2" Insulating Glass Concealed S/S 4 Bar Hinges Air Infiltration: <0.01 cfm2
C-AW85 Rating White Bronze Cam Handle/Strike Water Pressure: 15.05 PSF
C-HC85 Rating Corresponding Fixed Unit: 5710 Load Deflection: 85.27 PSF
Cut Size on W&H: 1/8"   Load Structural: 127.90 PSF
2 1/2" Flange Head/Jamb/Sill Options   Entry Resistance: Grade 10
Click Image to Enlarge:

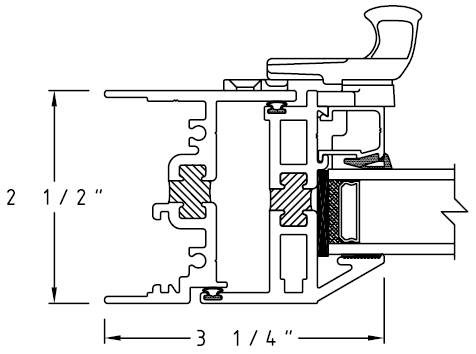

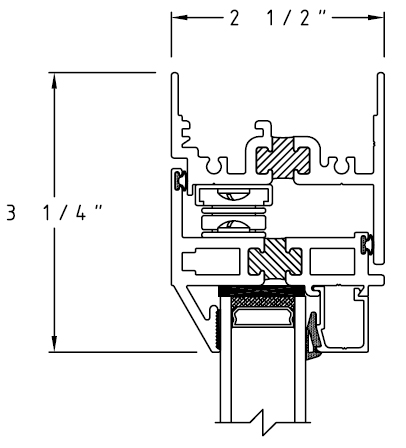

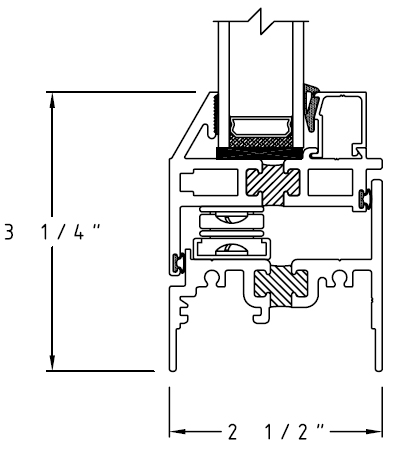

Head Jamb Sill
Head Jamb Sill
Download Materials for 5300:
