Double Hung Windows

Series 2500 - Tilt Double Hung


Technical Details Features Testing Results
Tilt Double Hung Easy-Grip Curved Lift Rail H-C45 Rating
3 1/4" Frame Top Sash Anti-Drift Latch Operating Force: 32lbf
7/8" Insulating Glass 3/4" Foam Standard Air Infiltration: 0.06 cfm2
H-C45 Rating Jamb Adjusters Water Pressure: 6.90 PSF
H-C50 Rating Engraved Metal Sash Lock Load Deflection: 45.14 PSF
Cut Size on W&H: 1/8" Fully Thermally-Broken Components Load Structural: 67.71 PSF
1 1/2" Flange Head/Jamb/Sill Options 2 Sash Locks (over 40" wide) Entry Resistance: Grade 10
2 1/2" Flange Head/Jamb/Sill Options Stainless Steel Pivot Bars
Minimum Size: 12" x 21" OITC 30 Rating Option
Maxiumum Size: 56" x 91" Corresponding Fixed Unit: 2510

Click Image to Enlarge:

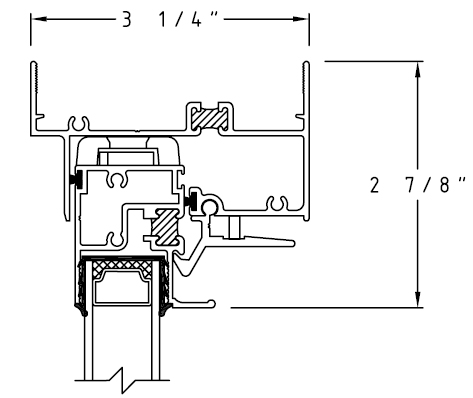

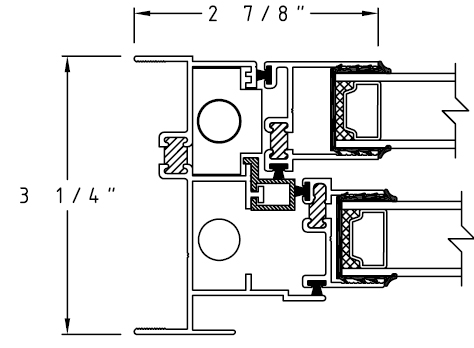

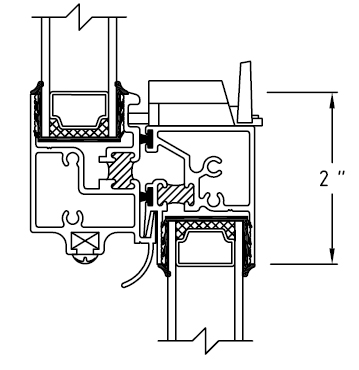

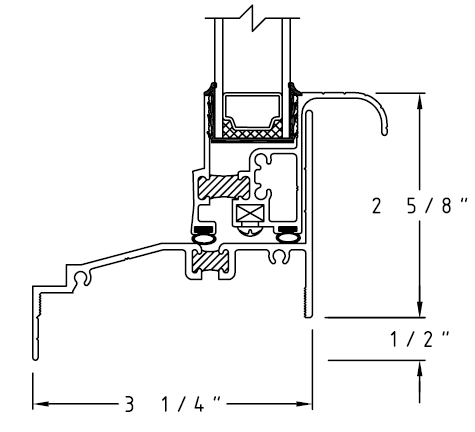

Head Jamb Meeting Rail Sill
Head Jamb Meeting Rail Sill
