Window Wall

Series 8000 - Window Wall System


Technical Details Features Testing Results
Casement/ Projected Inswing Units Structurally-Glazed Sashes C-AW70 Rating
4 1/2" Frame Pressure-Equalized Design Operating Force: 1.5lbf
1" Insulating Glass Euro-Groove Hardware Air Infiltration: 0.08 cfm2
C-AW70 Rating Optional Male-Female Mullion Water Pressure: 15.00 PSF
C-HC70 Rating Slab-to-Slab Receptor System Load Deflection: 70.00 PSF
3 7/8" Equal Sightlines Optional Structural Steel Inserts Load Structural: 105.00 PSF
I-Strut Thermal Break Fully Thermally-Broken Components Entry Resistance: Grade 10
Cut Size on W&H: 1/8" Corresponding Fixed Unit: 8010
Minimum Size: 18" x 18"
Maximum Test Size: 60" x 114"
Click Image to Enlarge:

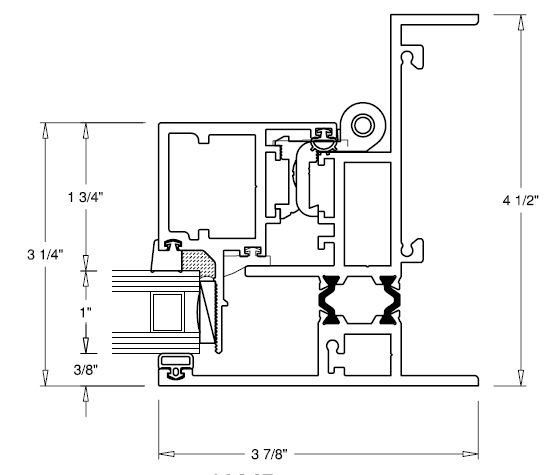

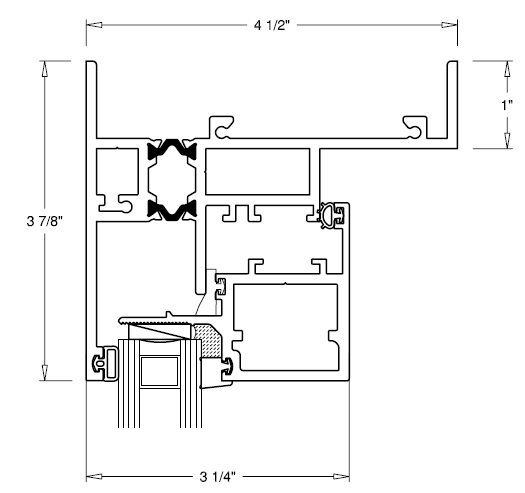

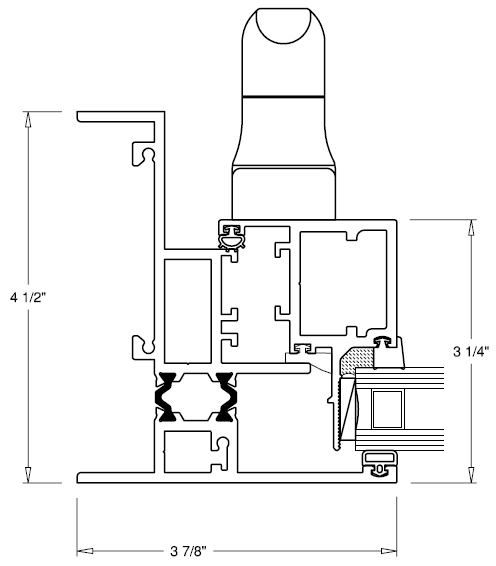

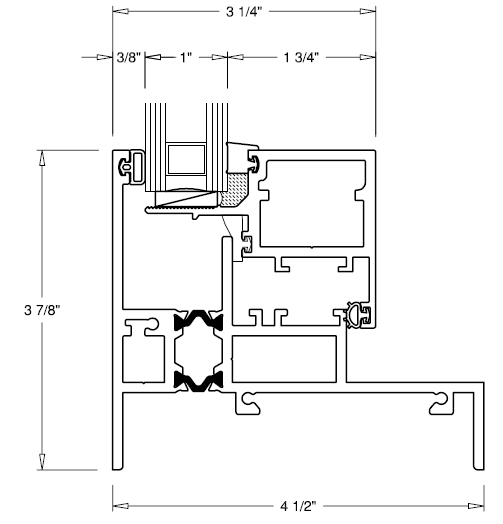

Head Jamb (Hinge) Jamb (Handle) Sill

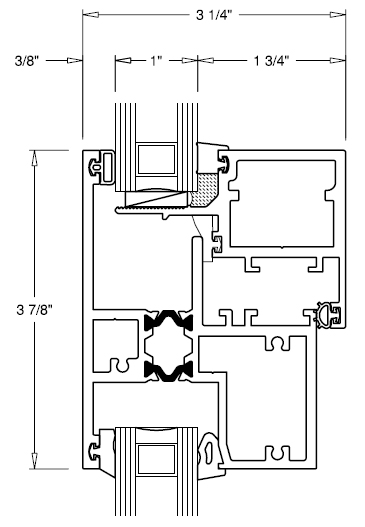

Mullion (F/O)
Head Jamb (Hinge) Jamb (Handle) Sill Mullion (O/F)
Download Materials for 8000:
