Projected Windows

Series 5100 - Projected Outswing

Technical Details	Features	Testing Results
Projected Outswing (Awning)	Beveled Sashes	AP-AW120 Rating
2 1/2" Frame	Fully Thermally-Broken Components	Operating Force: 12lbf
1" to 1 1/2" Insulating Glass	Concealed S/S 4 Bar Hinges	Air Infiltration: 0.03 cfm2
AP-AW120 Rating	White Bronze Cam Handle/Strike	Water Pressure: 15.05 PSF
AP-HC100 Rating	Corresponding Fixed Unit: 5710	Load Deflection: 120.38 PSF
Cut Size on W&H: 1/8"		Load Structural: 180.56 PSF
2 1/2" Flange Head/Jamb/Sill Options		Entry Resistance: Grade 10

Click Image to Enlarge:

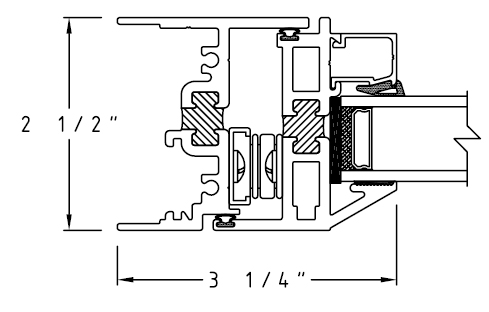

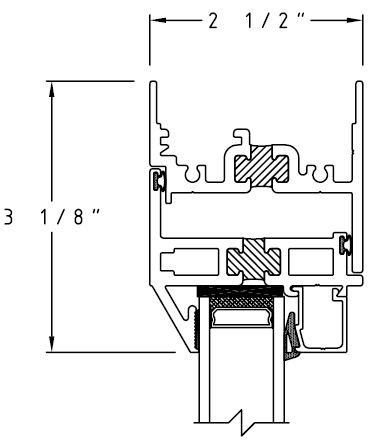

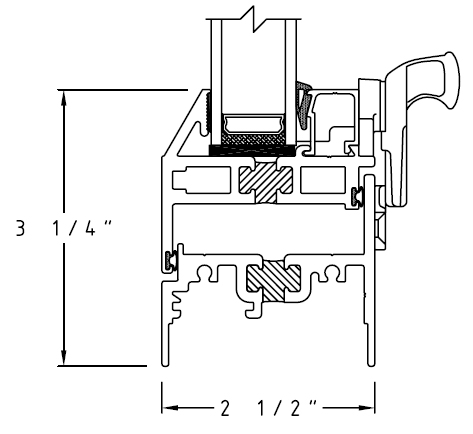

Head	Jamb	Sill

Download Materials for 5100:
